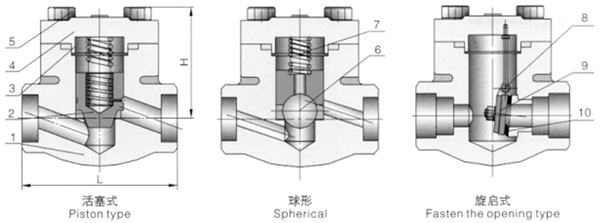

主要外形尺寸
型号Model:H41H、H41Y、H44H、H44Y
| Class | DN(mm) | NPS(in) | 尺寸(mm) | |||
| 缩径 | 全径 | 缩径 | 全径 | L | H | |
| 800(旋启式) | 15 | 10 | 1/2 | 3/8 | 80 | 61 |
| 20 | 15 | 3/4 | 1/2 | 92 | 61 | |
| 25 | 20 | 1 | 3/4 | 111 | 78 | |
| 32 | 25 | 1 1/4 | 1 | 120 | 85 | |
| 40 | 32 | 1 1/2 | 1 1/4 | 120 | 103 | |
| 50 | 40 | 2 | 1 1/2 | 140 | 119 | |
| 50 | 2 | 170 | 132 | |||
| 800(活塞式、球形) | 15 | 10 | 1/2 | 3/8 | 80 | 61 |
| 20 | 15 | 3/4 | 1/2 | 92 | 61 | |
| 25 | 20 | 1 | 3/4 | 111 | 78 | |
| 32 | 25 | 1 1/4 | 1 | 120 | 85 | |
| 40 | 32 | 1 1/2 | 11/4 | 152 | 103 | |
| 50 | 40 | 2 | 1 1/2 | 172 | 119 | |
| 50 | 2 | 200 | 132 | |||
| 1500(旋启式) | 15 | 10 | 1/2 | 3/8 | 111 | 79 |
| 20 | 15 | 3/4 | 1/2 | 111 | 79 | |
| 25 | 20 | 1 | 3/4 | 120 | 96 | |
| 32 | 25 | 1 1/4 | 1 | 140 | 105 | |
| 40 | 32 | 1 1/4 | 1 1/4 | 140 | 120 | |
| 50 | 40 | 2 | 1 1/2 | 160 | 140 | |
| 50 | 3/8 | 2 | 220 | 160 | ||
| 1500(活塞式、球形) | 15 | 10 | 1/2 | 3/8 | 111 | 79 |
| 20 | 15 | 3/4 | 1/2 | 111 | 79 | |
| 25 | 20 | 1 | 3/4 | 130 | 96 | |
| 32 | 25 | 1 1/4 | 1 | 150 | 105 | |
| 40 | 32 | 1 1/2 | 11/4 | 172 | 120 | |
| 50 | 40 | 2 | 11/2 | 220 | 140 | |
| 50 | 2 | 230 | 160 | |||
